dogyunRecently, the ECS in the MG machine room in Hong Kong is divided into international lines and BGP lines. Since the international lines are detours, we still pay attention to the BGP line. Currently, the default ECS in the BGP line of the MG machine room is up to 300Mbps. Let's see how the mainland users use the BGP line?For this reason, this article has set up a 2G memory, 2-core ECS for everyone to do a simple evaluation, and the test data is only for reference.

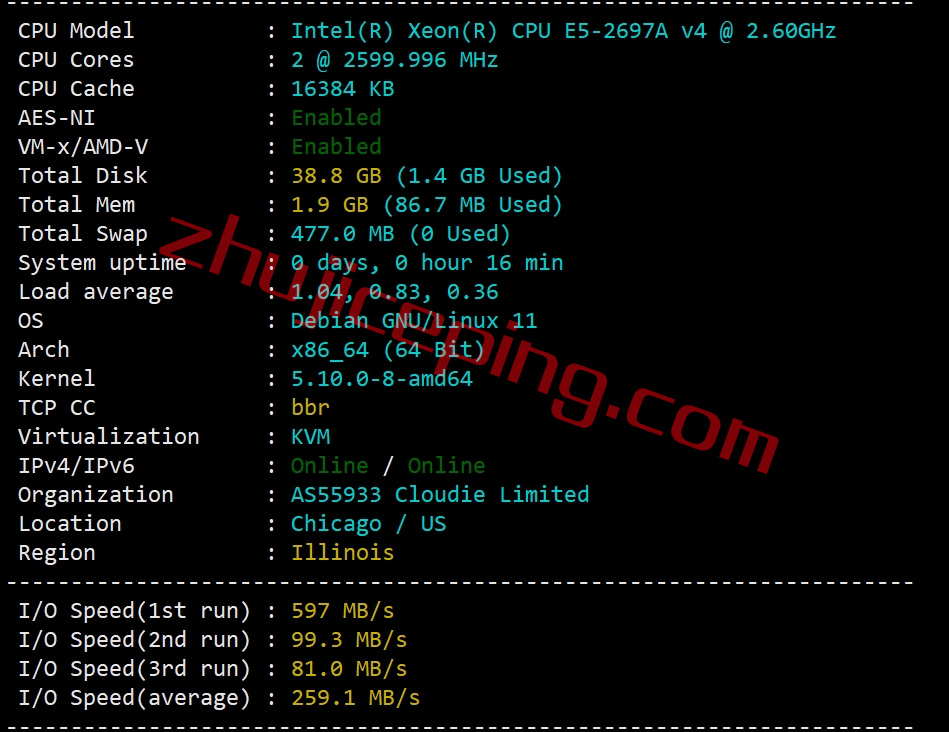

The CPU model is e5-2697A V4 (dual channels are 32 core 64 threads, 2.6GHz main frequency, 3.6GHz acceleration frequency), and the BBR is enabled. From the perspective of AS, it seems to be Cloudie. The IP address is Chicago, USA, and the I/O of the hard disk is 259MB/S roughly:

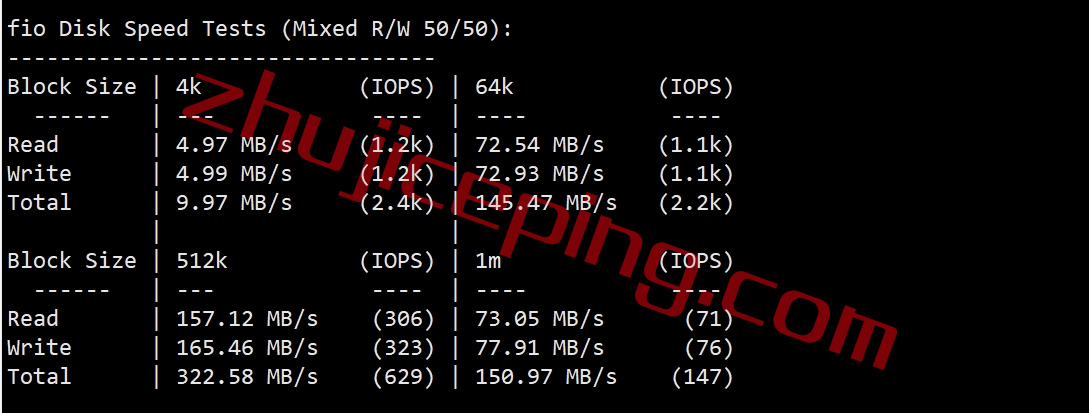

The FIO test reads and writes data, roughly as follows:

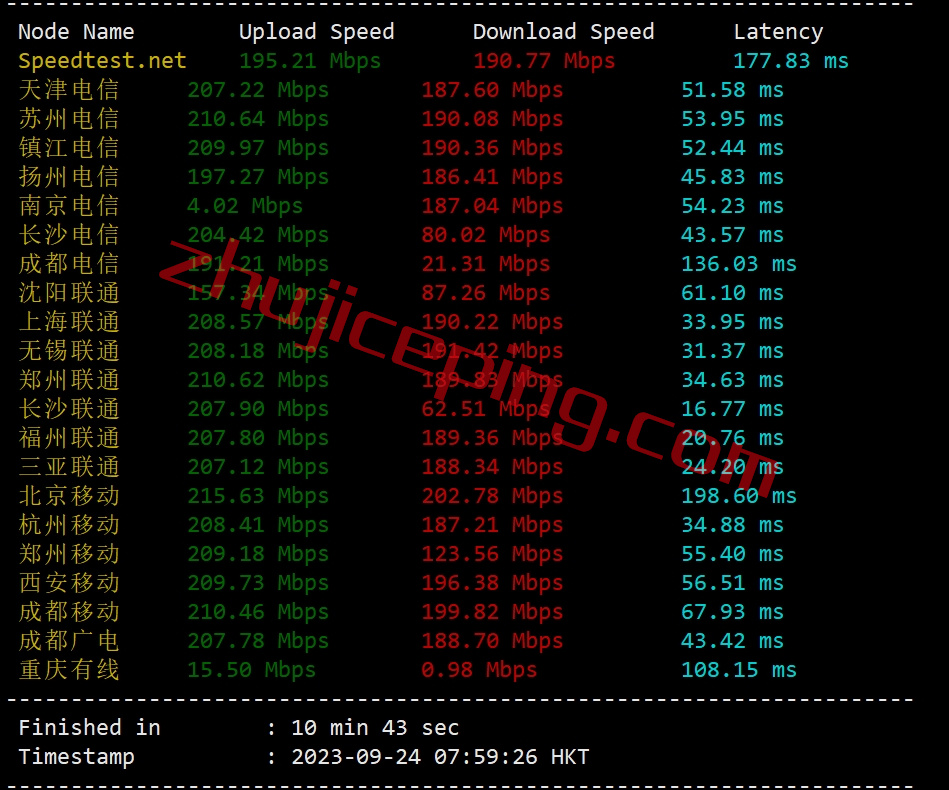

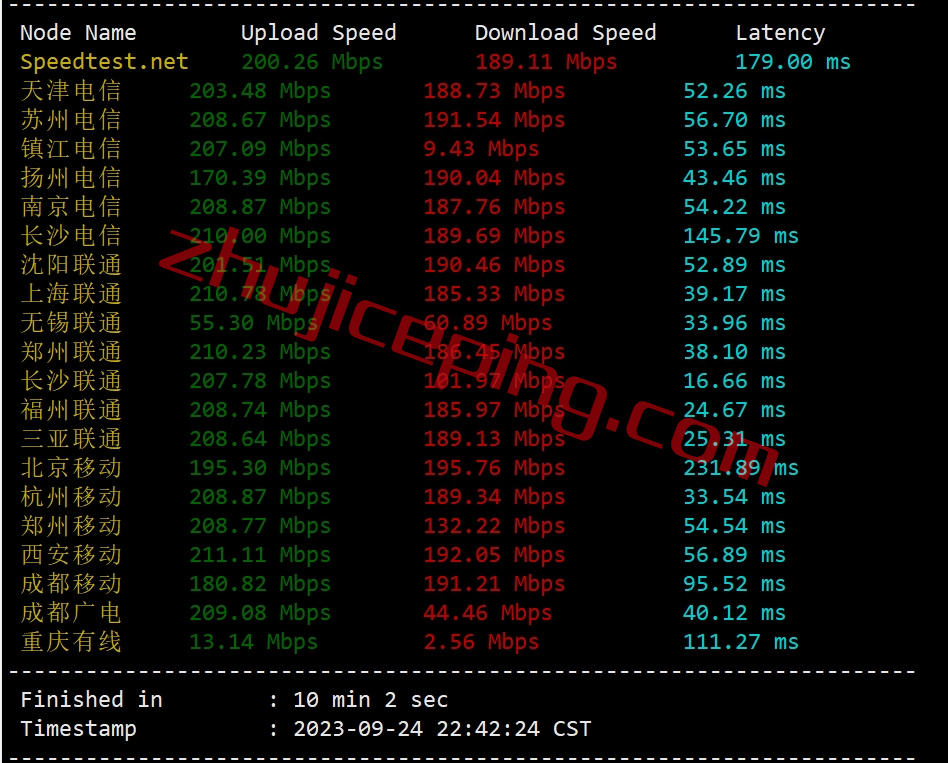

The default bandwidth is 200M. We use the domestic three networks and multiple nodes to test the downlink and uplink bandwidth to see how much it can run:
In the same test, we focus on the next evening peak:

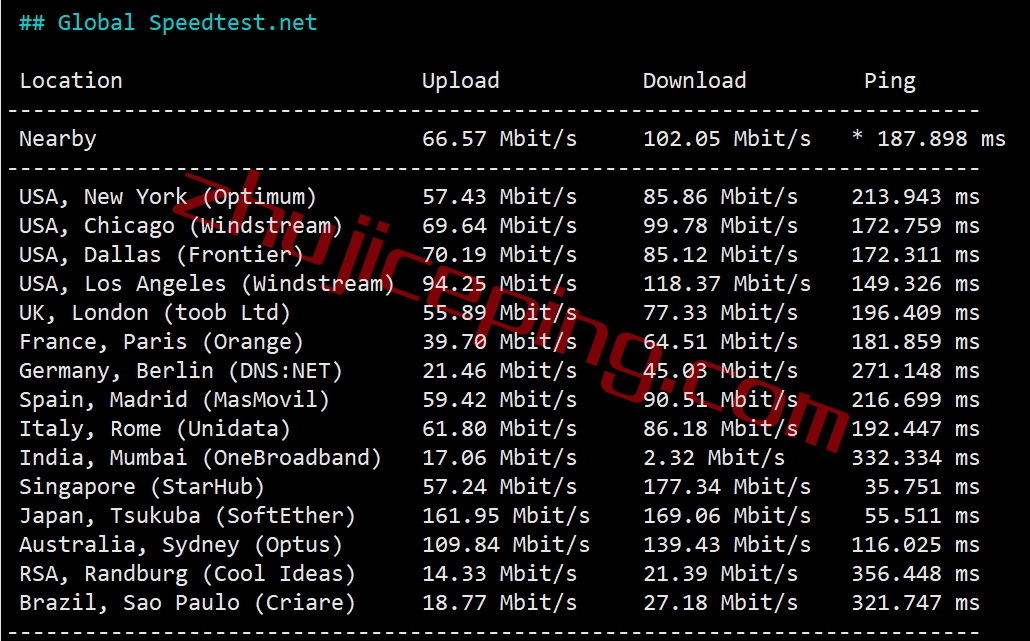

Test data of some international nodes of speedtest:

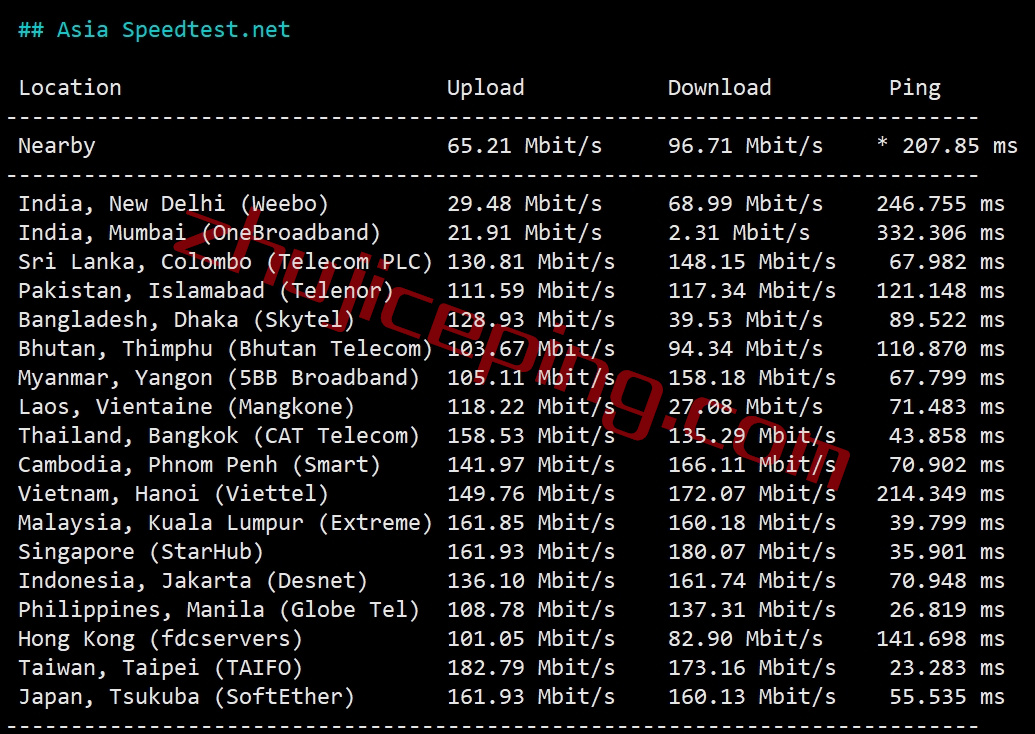

Test data of some Asian nodes of speedtest:

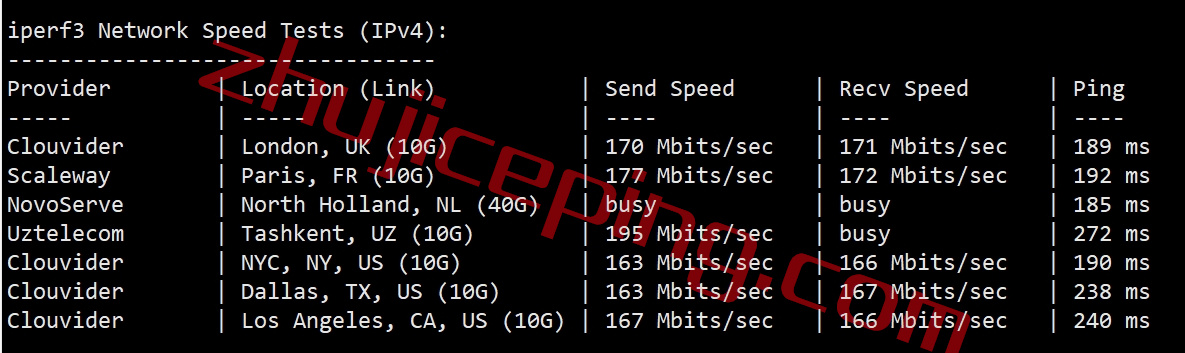

Iperf3 tests several European and American nodes:

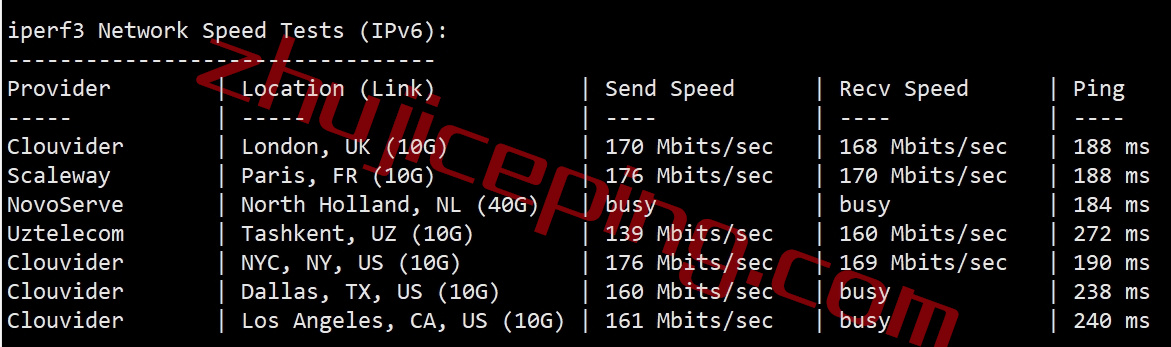

iperf3,IPv6,Test several European and American nodes:

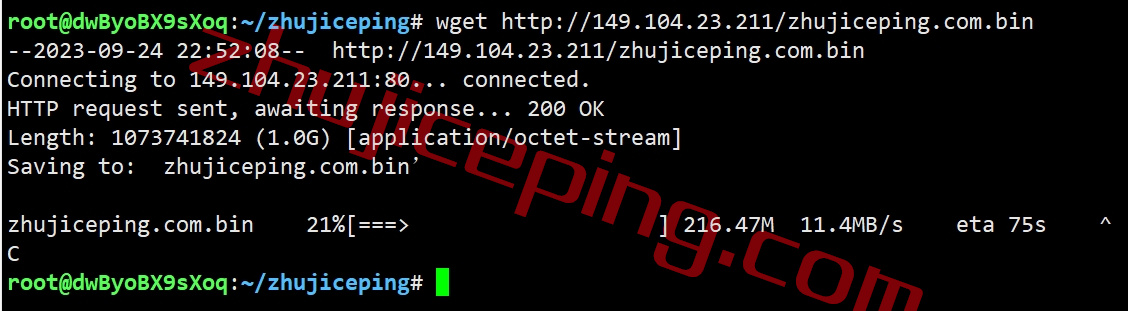

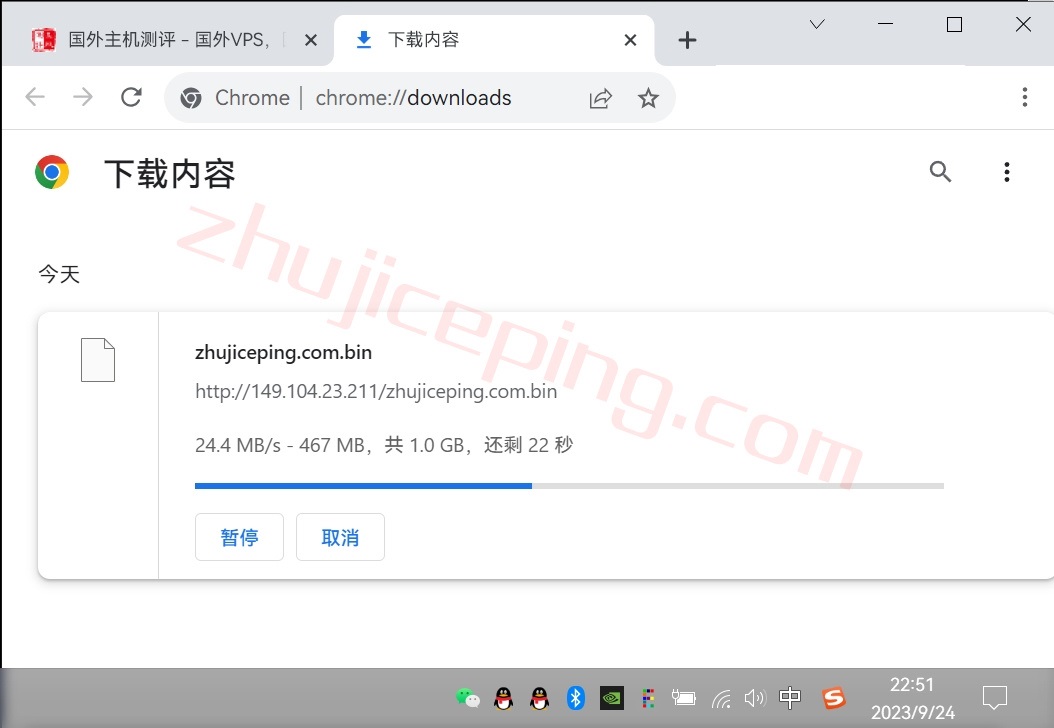

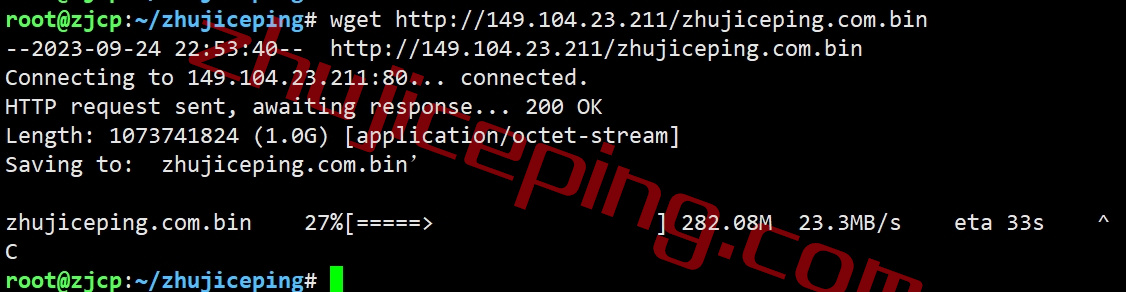

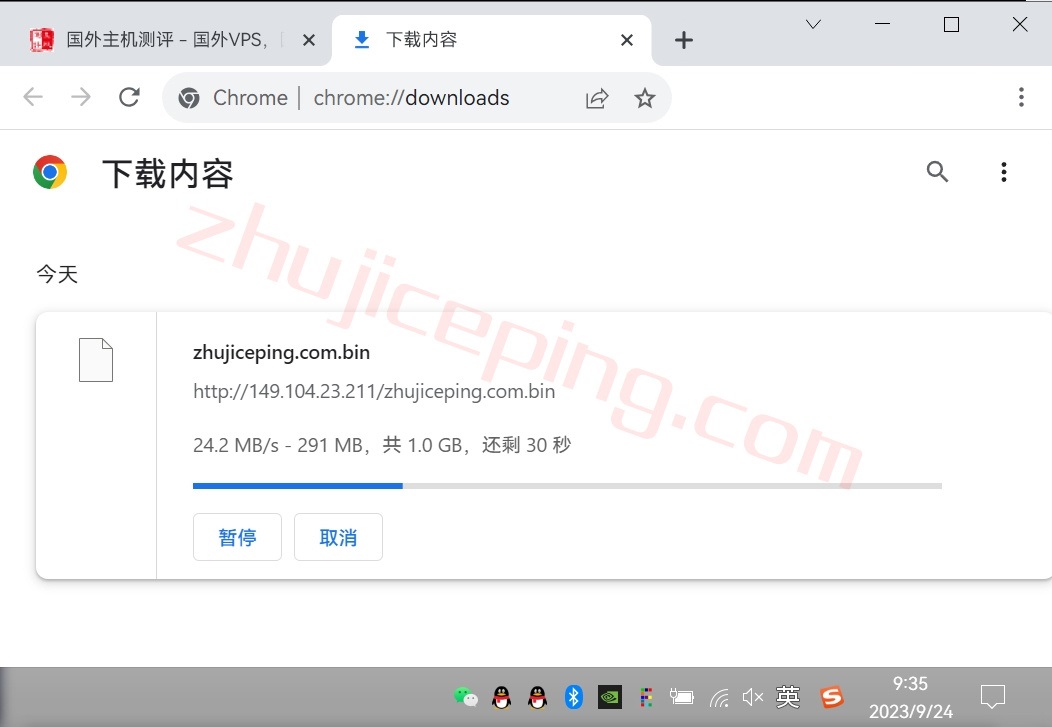

Files stored on the test machine, Guangzhou Unicom home broadband, direct browser download, approximate speed:

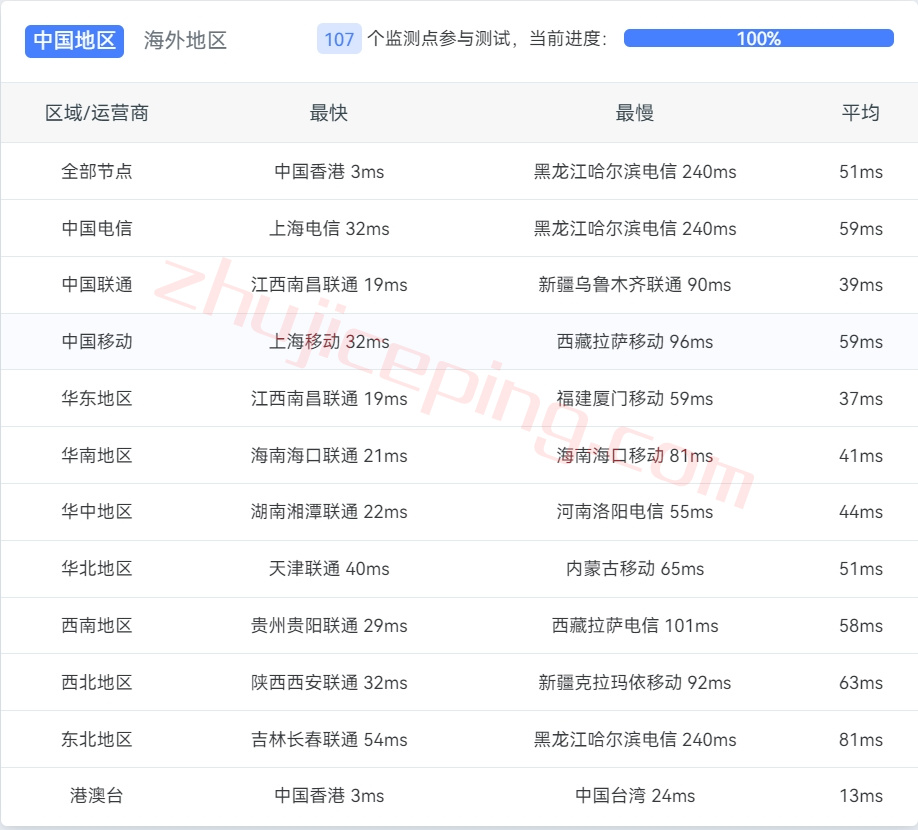

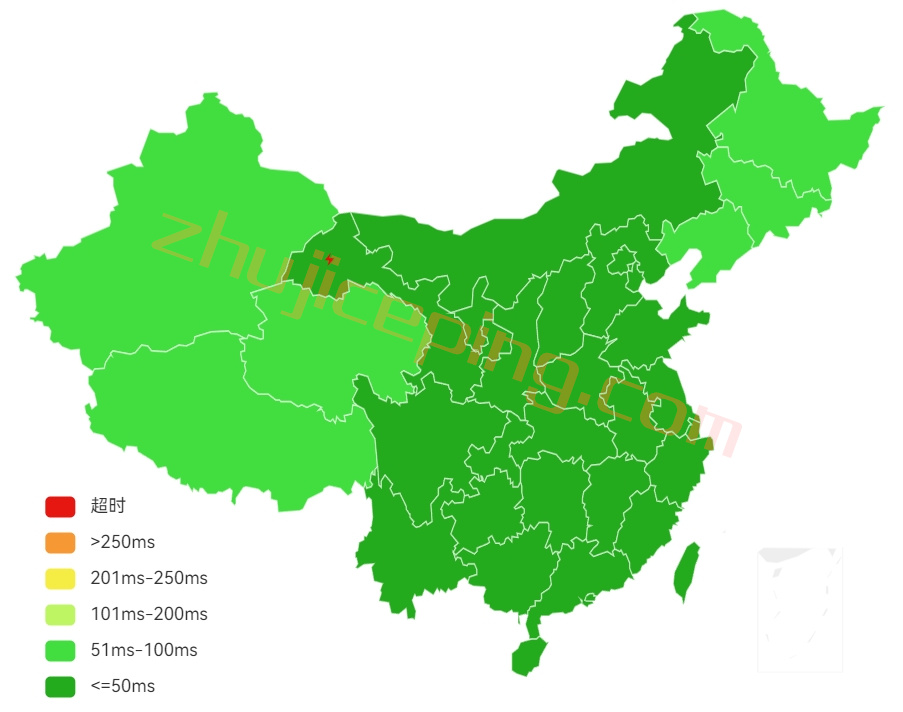

Delay test data of domestic three networks and multiple nodes:
Since no better destination test node was found, the mapping will not be done here, and it will be added later, but it can be said that the three networks directly connect to Hong Kong and then go to the computer room through NTT.

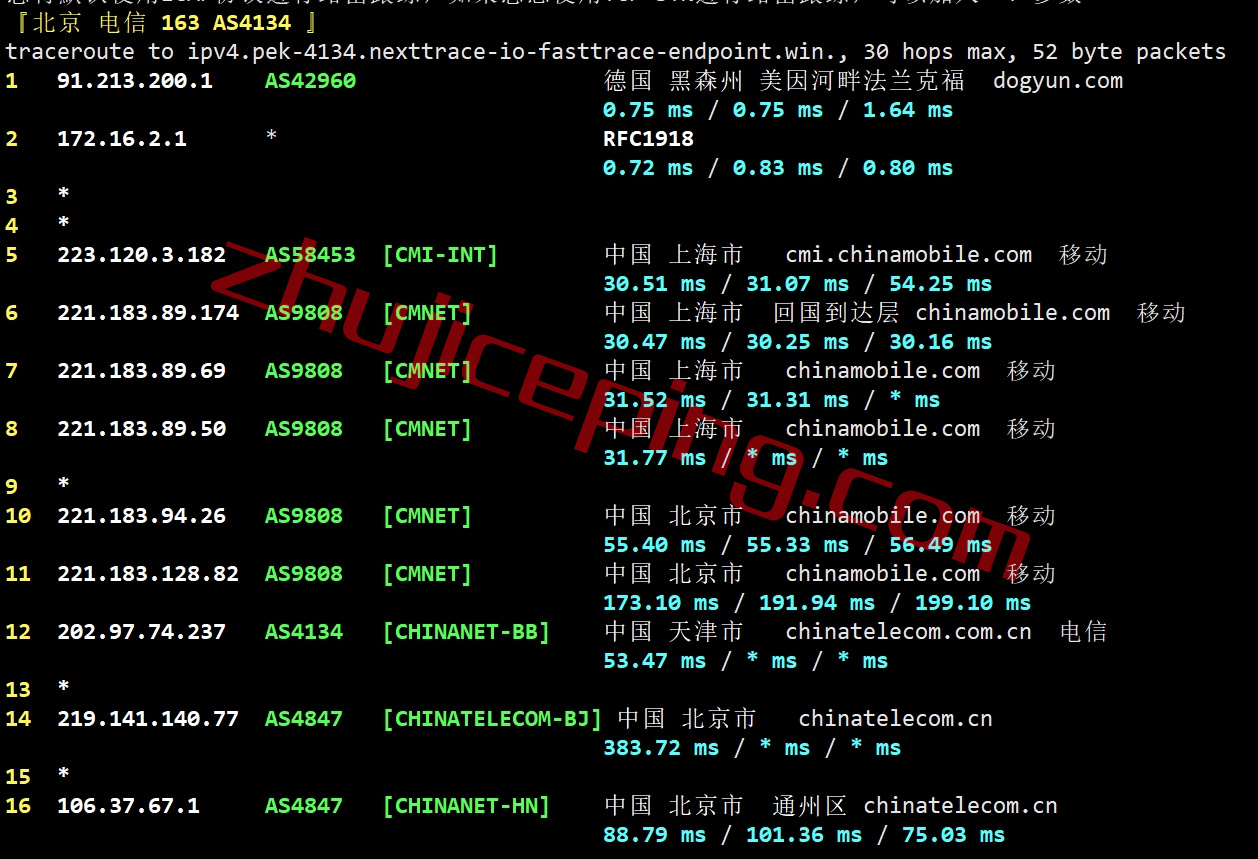

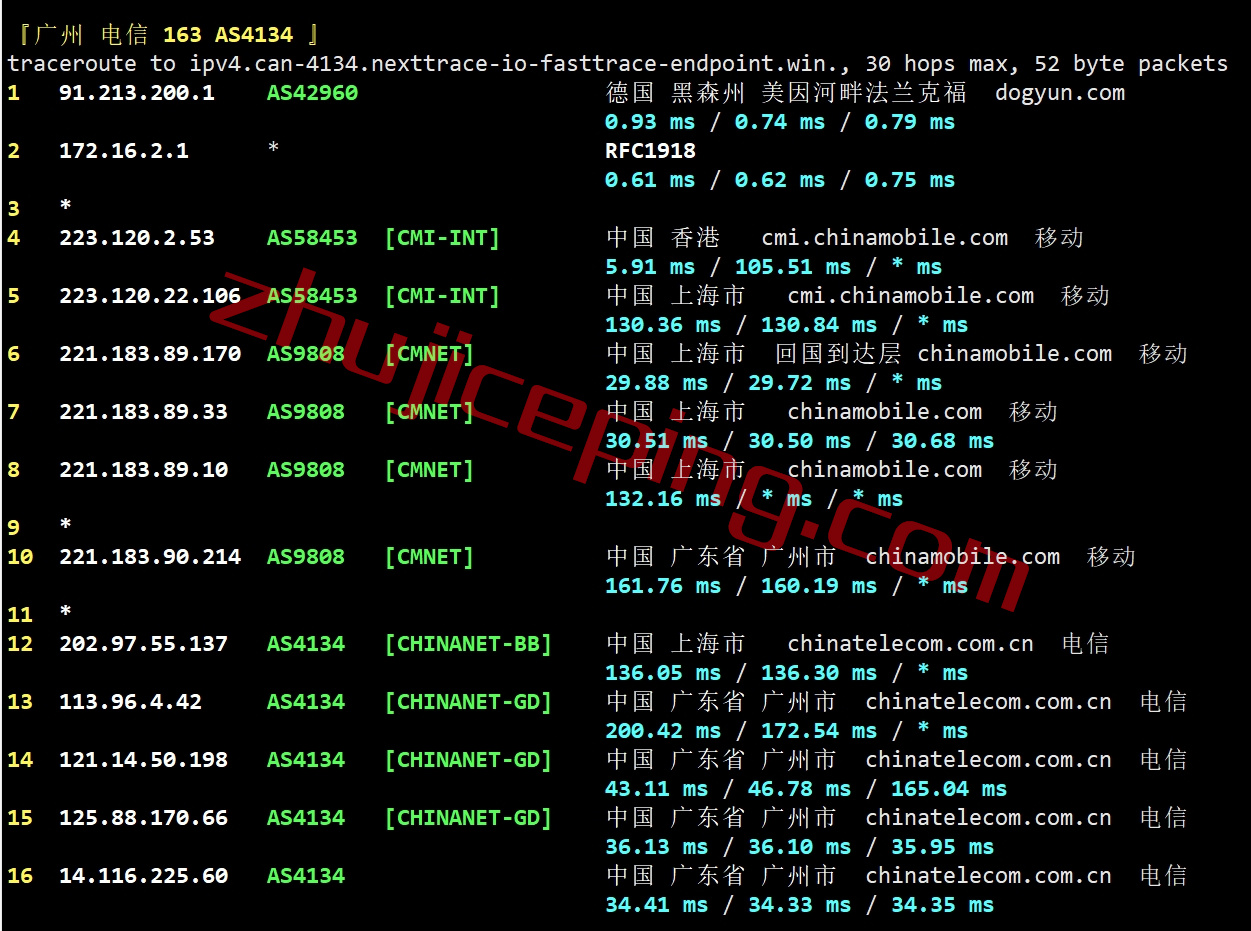

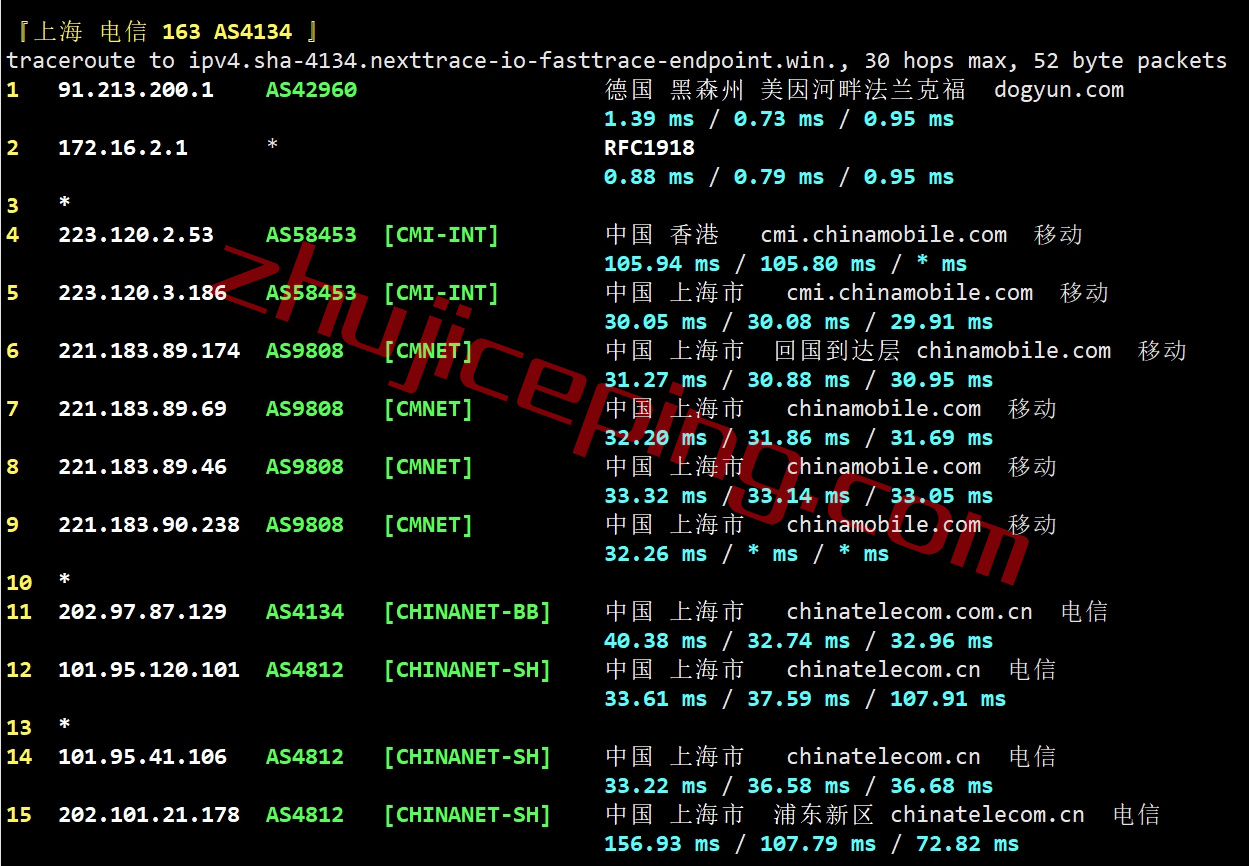

Telecom return journey: it is the return journey of mobile CMI

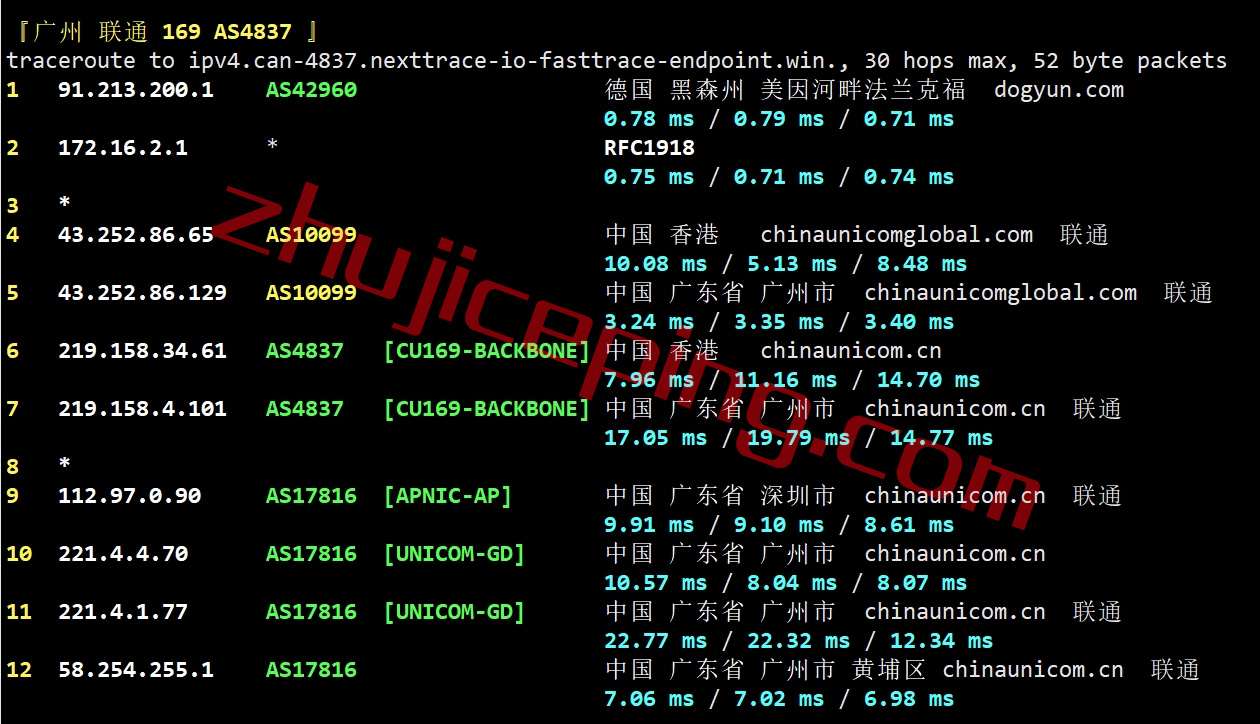

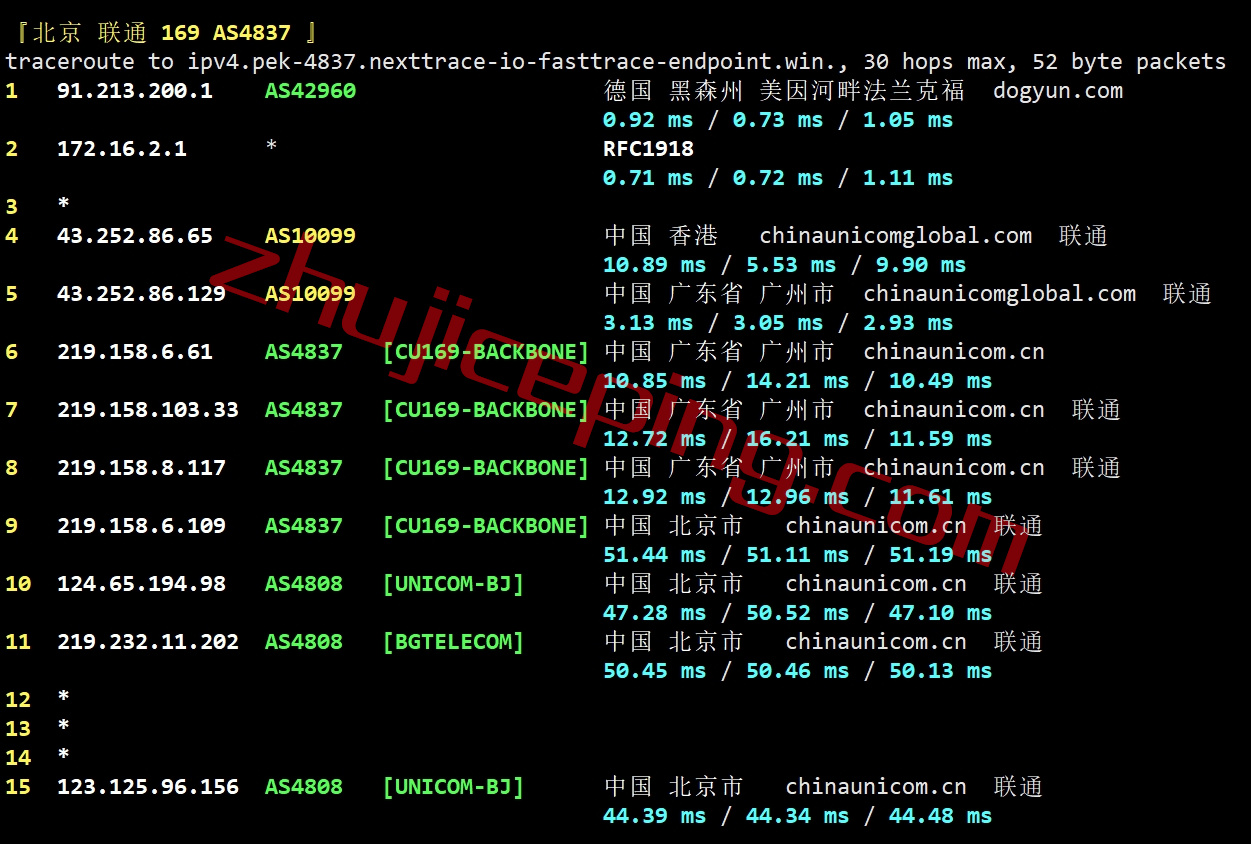

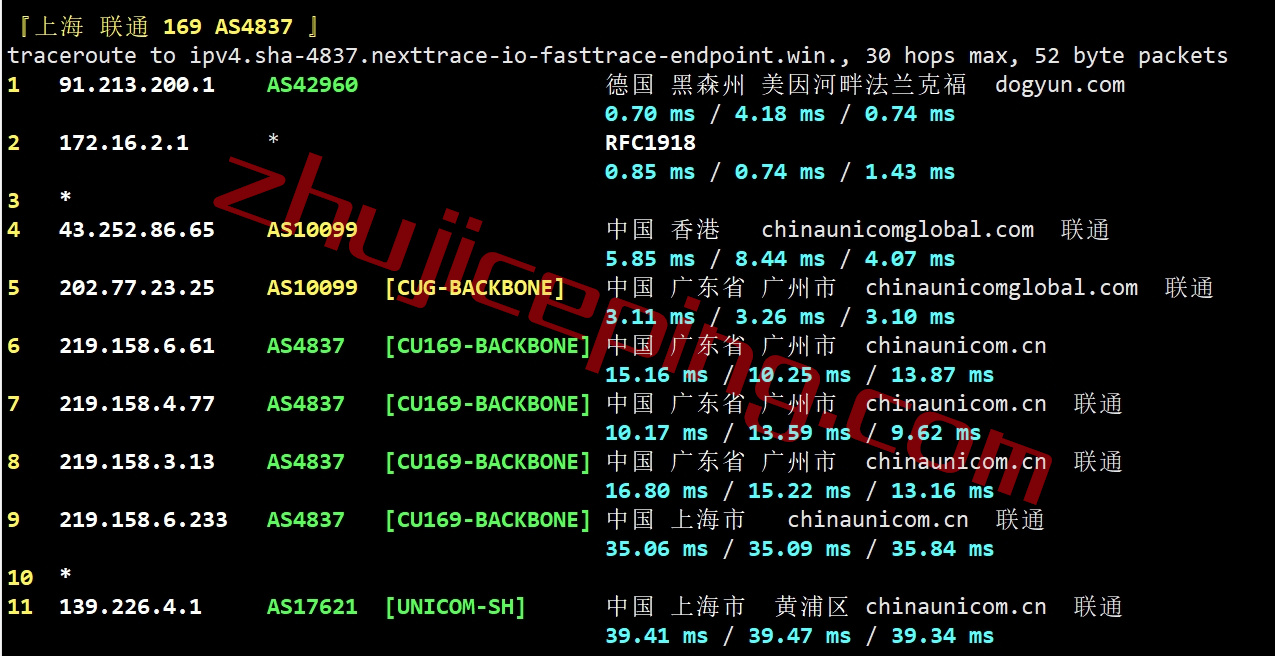

China Unicom return: direct connection from China Unicom Hong Kong node back to the mainland

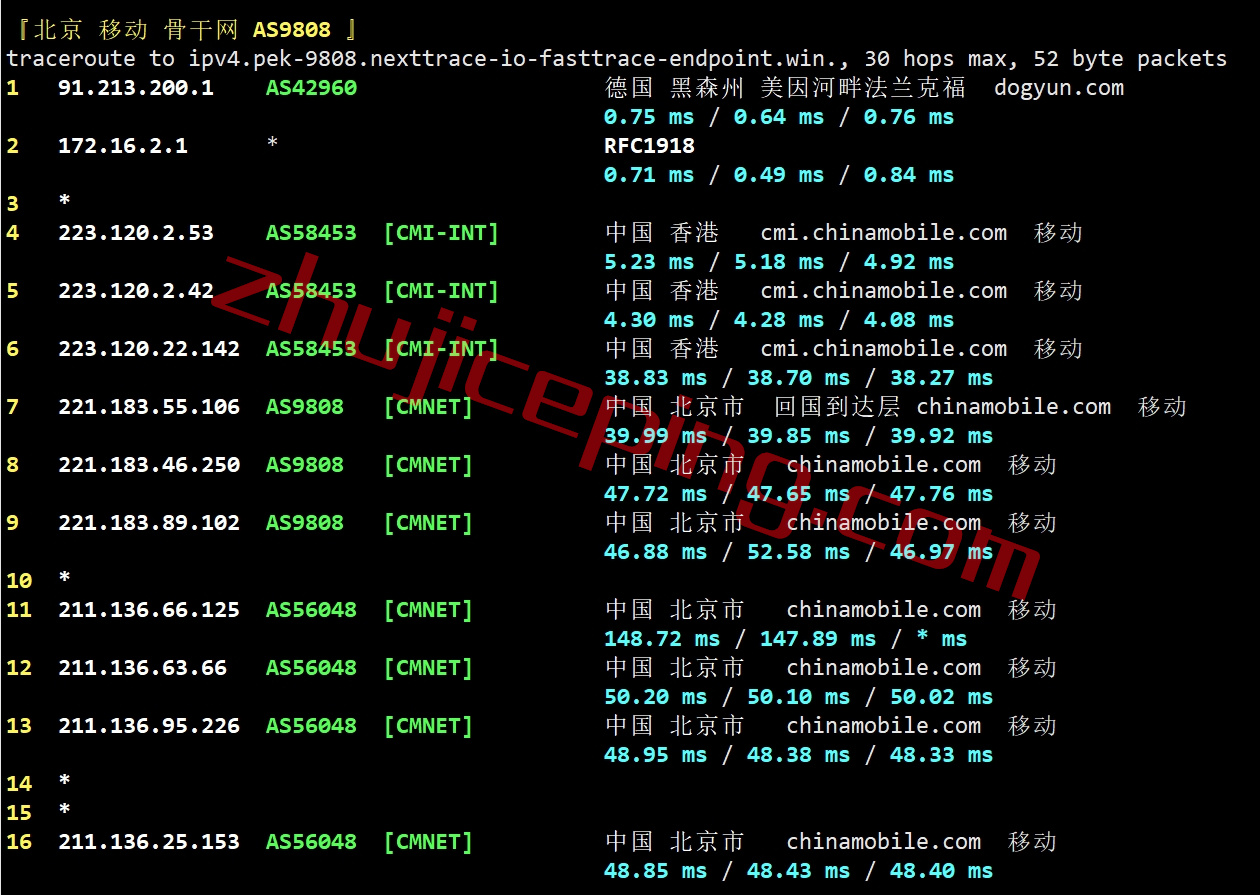

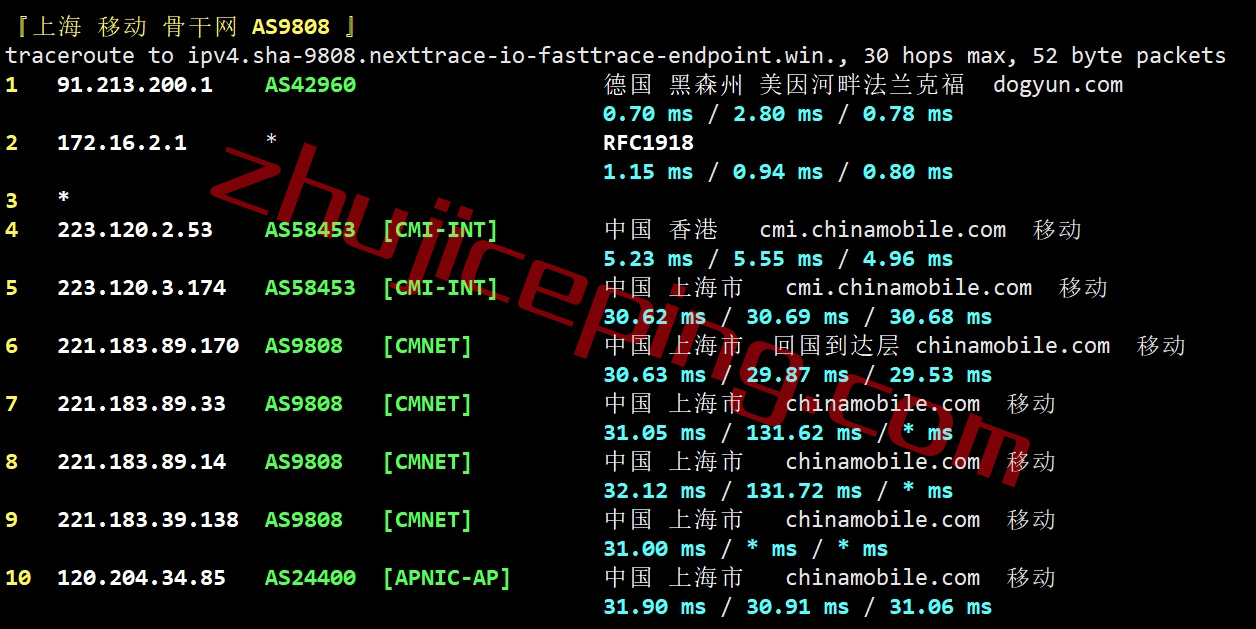

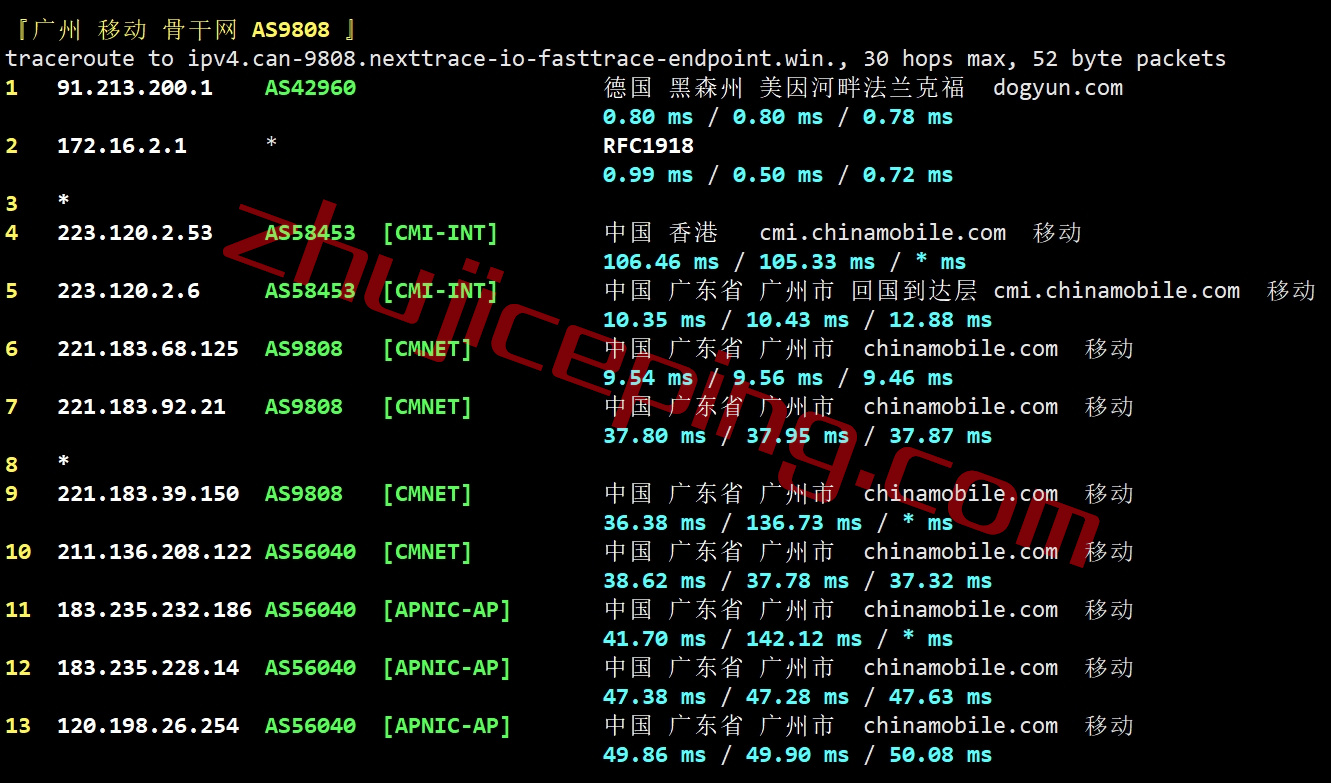

Mobile backhaul: direct connection from mobile CMI in Hong Kong back to the mainland

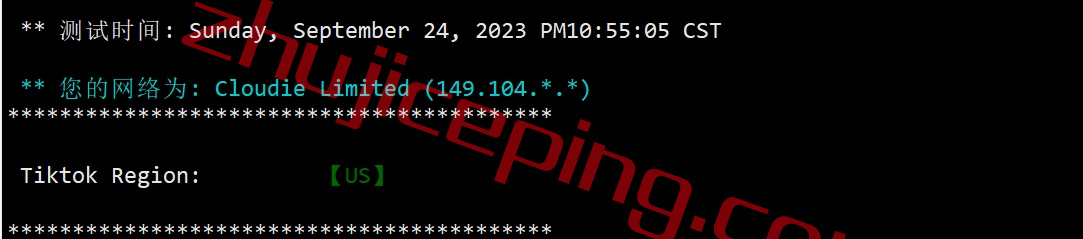

Tiktok unlocking: because it is a US broadcast IP, the US tiktok is unlocked

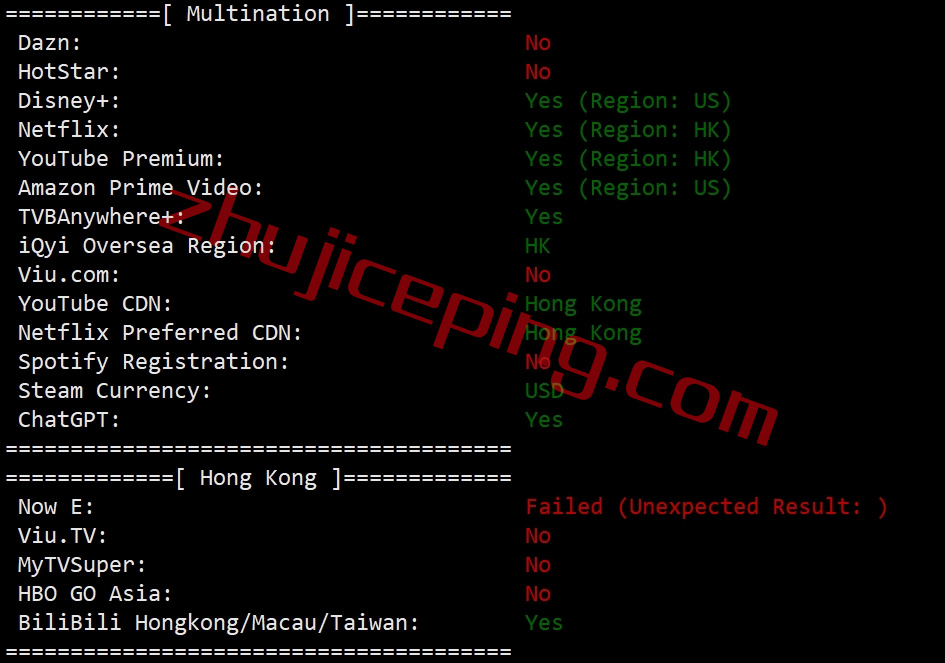

Partial cross region streaming media unlocking: netflix and chatgpt can be unlocked

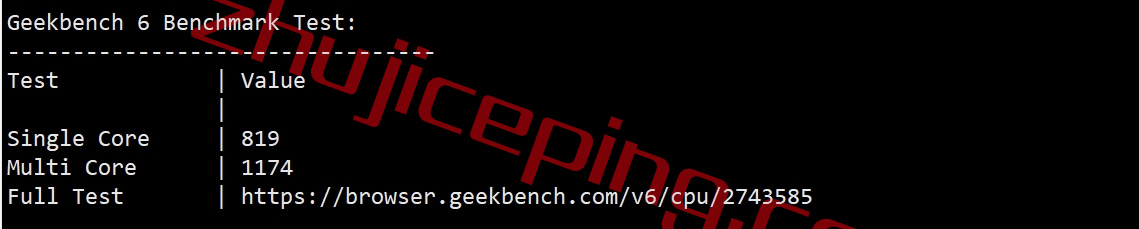

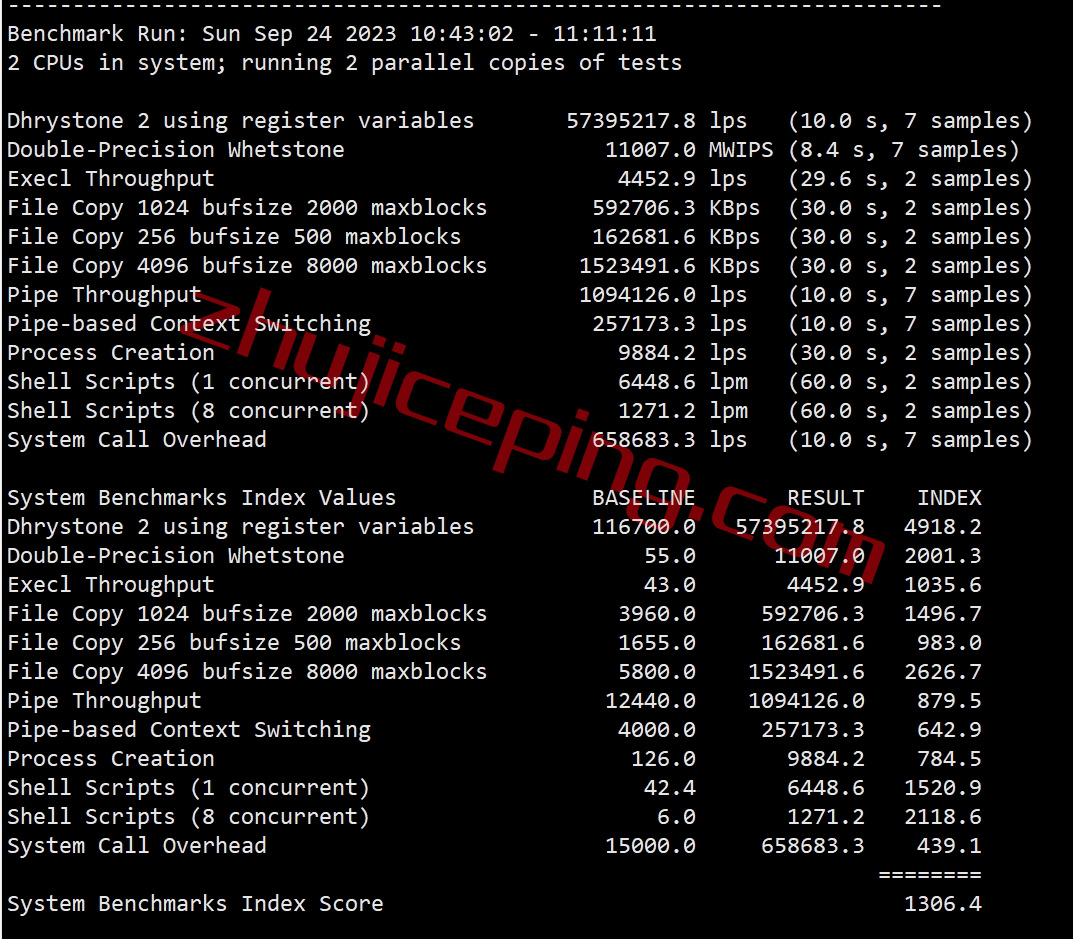

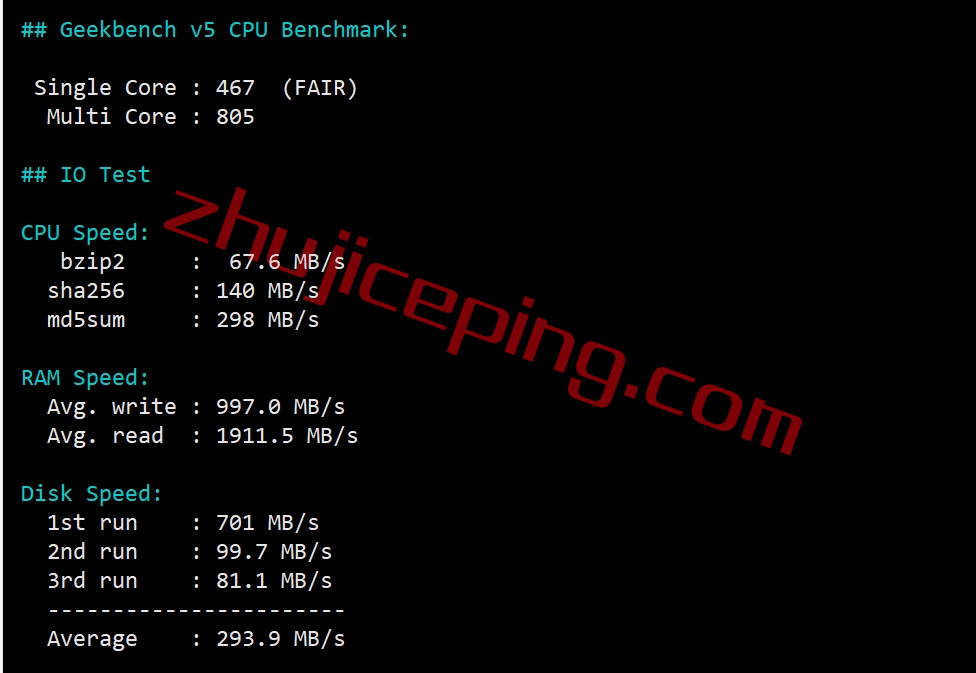

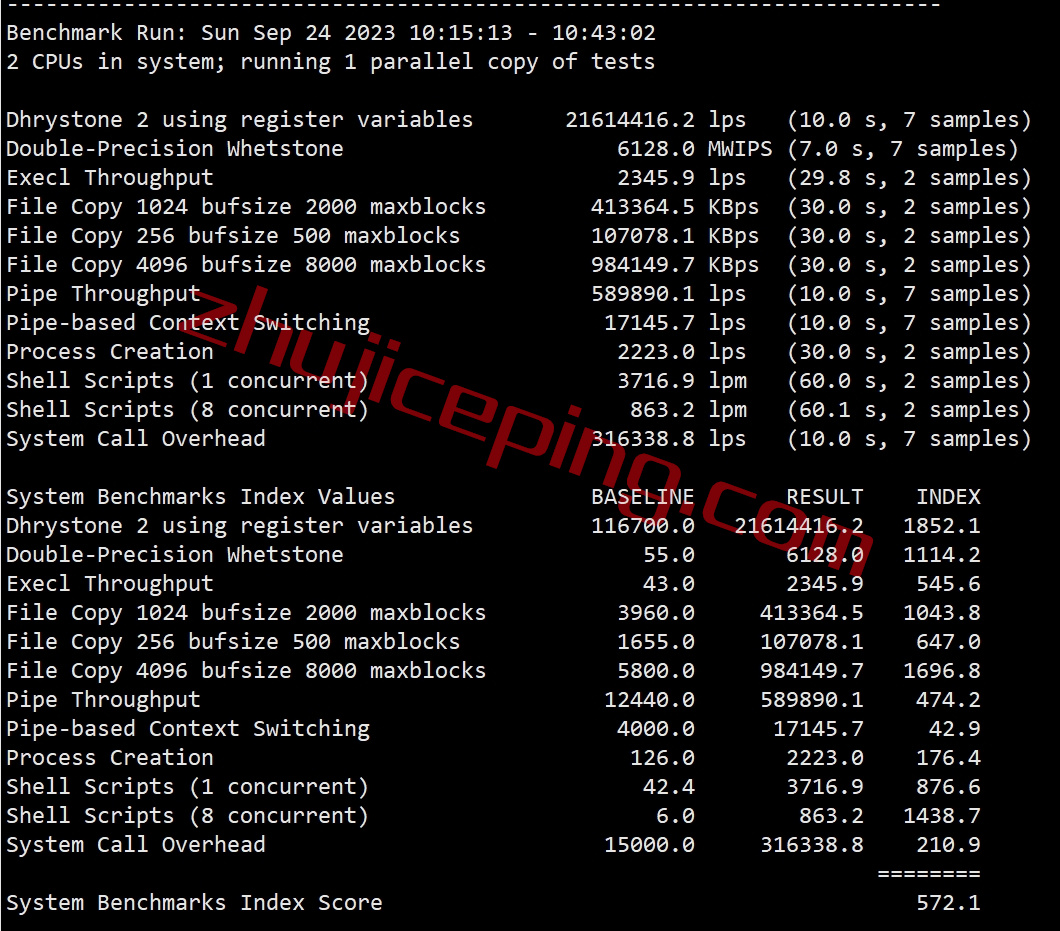

The approximate data of some performance tests are as follows:
To sum up:
At present, hard disk I/O is limited, and geekbech6 scores well;
In terms of network, the three networks are directly connected to each other, and the three networks are still directly connected to each other (China Mobile CMI, China Unicom, China Mobile CMI). The network can almost run full bandwidth, which is worth trying!
