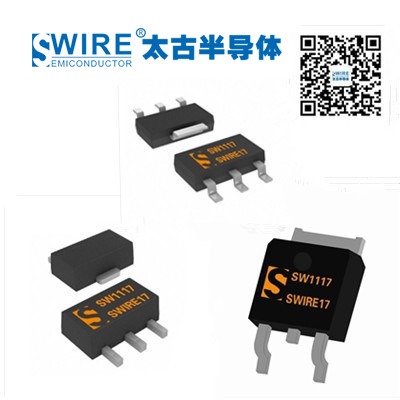

AMS1117 Description:
1117 is a series of low loss three terminal regulators, and the typical loss under 1A load current is 1.3V. In addition to the fixed voltage version (Vout=1.2V, 1.5, 1.8V, 2.5V, 3.3V, 5V), 1117 also has an adjustable version, which can provide 1.25 to 12V output voltage. 1117 provides thermal shutdown function to ensure the stability of chip and power system. Trim technology shall be adopted to ensure ± 2%. The output voltage precision 1117 is packaged with SOT-223 TO-252 power supply product
characteristic:
1: The maximum output current is 1
2: Operating input voltage range: max. 15V Line regulation value: 0.1%/V (typical)
3: Load regulation: 10mV (typical)
4: Ambient temperature: - 20 ℃~85 ℃
Application:
1：DVB
2: Computer motherboard, graphics card
3: LCD display and liquid crystal
4: DVD decoding board
5: ADSL modem
Shenzhen Taikoo Semiconductor Co., Ltd. is a high-tech enterprise focusing on the design, production and sales of integrated circuit products. It is committed to providing customers with flexible, efficient and reliable chip technology solutions. The company is composed of a group of management and technical talents who have worked for many years in well-known overseas enterprises country i International i one i flow Development technology.
Product category: audio power amplifier, comparator, operational amplifier, logic circuit, power management, lithium battery protection, low-voltage detection (reset), DLDO，DC-DC，AC/DC， IC products such as voltage rise and fall, constant current voltage rise and fall drive, three terminal voltage stabilization, high and low voltage MOS, lighting drive, memory EEPROM, wireless remote control receiving and transmitting, etc.
